Warm water underfloor heating and wall heating systems

About Profix™ – Epic Insulation Ltd

Radiant Heating Panels
The Profix™ Panel is a revolutionary new pipe retention panel designed for use with warm water underfloor heating and wall heating systems incorporating 10mm to 12mm diameter pipe.

Epic Insulation Ltd is a leading UK manufacturer and supplier of specialist products to the underfloor heating and wall heating market and is the sole manufacturer of the Profix™ Panel.

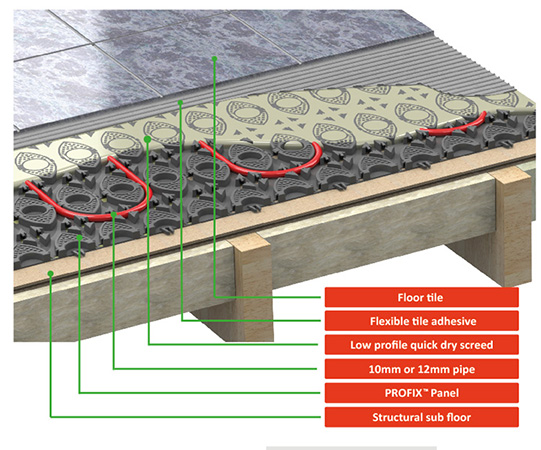

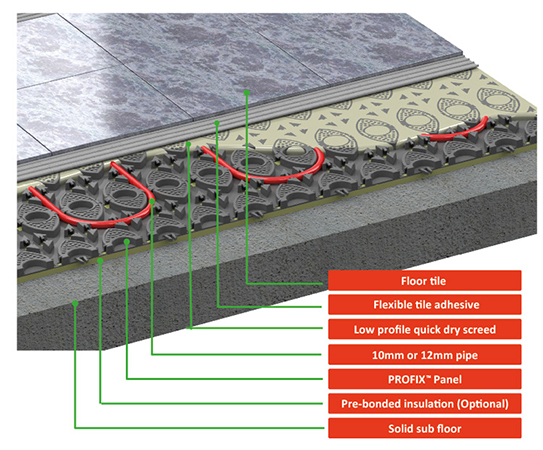

Profix™ Low Profile Screed System
The Profix™ Panel, when combined with quick drying Profix™ Levelling Compound, provides a VERY LOW PROFILE ( as thin as 15mm ) HIGH HEAT OUTPUT floor heating solution suitable for both new build and retrofit projects.

The Profix™ Low Profile Screed System can be installed on suspended timber floors, solid floors, or beam & block floors and in good drying conditions final floor coverings can be applied in just 24 hours.

Due to the high mass low thickness of the system, it delivers high heat outputs even at low water temperatures making it an ideal solution for use with ground source or air source heat pumps.

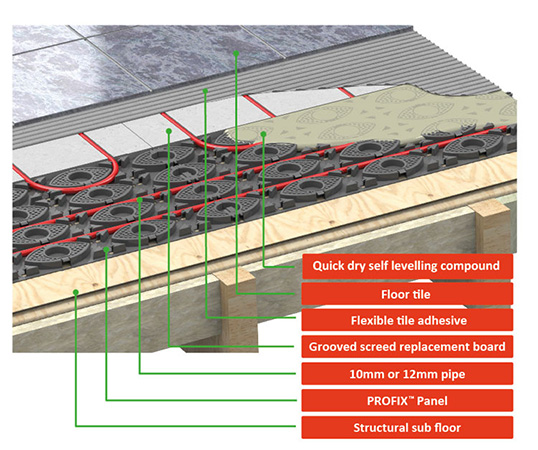

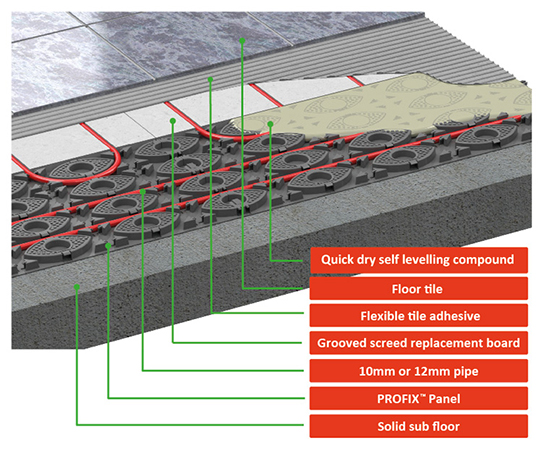

Profix™ Grooved Screed Board System
The Profix™ Panel is an ideal end return / highway panel for use with grooved screed boards incorporating either 10mm or 12mm pipe and thanks to the inclusion of an optional pre-bonded insulation layer the panels can be made compatible with grooved screed boards of any thickness, starting from as thin as 15mm.

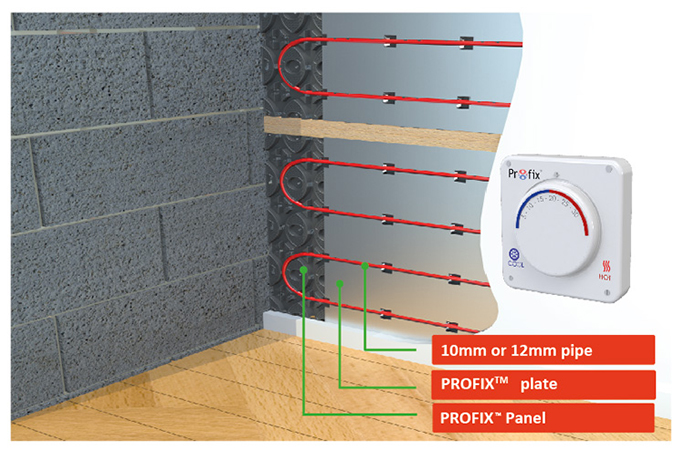

Profix™ Wall Heating System
The Profix™ Panel, when combined with the Profix™ Aluminium Heat Diffuser Plate, provides a quick and easy to install wall heating solution ideal for bathrooms,
en-suites and wet rooms where limited floor area restricts the heat output available from an underfloor heating system alone.

The purpose made Profix™ Aluminium Heat Diffuser Plate exposes the pipe retention clips in the Profix™ Panel beneath allowing the pipework to be securely clipped into place when the panels are mounted vertically on a wall.
