Why do we need fire insulation in drainage technology?
Within the context of preventive fire insulation, plastic floor drains with vertical outlets are regarded as pipe/ceiling feed-throughs that require sealing off. This is because if a fire breaks out, flames, smoke and heat can spread very quickly via the wastewater pipe and set fire to further floors of a building. The same applies to flat roofs. In this case, the fire can jump to the roof via the roof drains. In order to prevent this, it must be possible to professionally seal all feed-throughs of this type in compliance with the pertinent standards.

Preventative fire insulation
The term for all organisational, construction and technical measures designed to prevent the occurrence and spread of fires. This includes the standard-compliant sealing of pipes and ceiling feed-throughs.

Pipe bushings
Fire insulating elements fitted with a swelling agent ensure that plastic pipes, drainage pipes, floor drains and roof drains are sealed in the event of fire.

Fire resistance class
The fire resistance class of a component provides information on how long it can withstand a fire. The classification is defined in the standards DIN 4102-2 and DIN EN 13501-2. The resistance class must be verified by means of a suitable fire resistance test, which must be performed in accordance with the specifications of the standard DIN 4102 or DIN EN 1363 ff.

Fire insulation for flat roofs
Specially designed fire insulating elements are available for concrete roofs and steel trapezoidal-profiled roofs. However, the basic operating principle is always the same.

Flat roof drainage

Drainage of flat roofs
The drainage of flat roofs is essential to drain off rain water and to protect the roof against moisture damage and warping. Dallmer products are available for flat roofs of solid or lightweight construction and with a single or double-ply membrane. These days, the most common roof structure in Germany is the single-ply, non-ventilated flat roof
(warm roof). This can also be converted to an inverted roof. Unlike a conventional non-ventilated flat roof, in an inverted roof construction the waterproofing is located beneath the thermal insulation. Different countries, different customs: in other countries, such as Switzerland, flat roof drains are often embedded in the concrete surface, while Germany primarily uses lightweight constructions. Technical details of the drainage solutions will always need to be tailored to the particular features of the building. Generally speaking, when dealing with flat roofs, a distinction is made between non-utilised surfaces, i.e. foot traffic only occurs for the purpose of maintenance, and utilised flat roofs, which can withstand the weight and impact of pedestrian and/or vehicle traffic.

The need for flat roof drainage
In order to prevent water accumulation and moisture damage, flat roofs need to be equipped with special drainage systems.

Type of flat roof drainage
Each drainage low point (roof sub-area) is allocated a roof drain and an overflow drain.

Overflow drains
Overflow drains are mandatory and ensure reliable drainage even in the event of extremely heavy rainfall.

Active mechanisms
Methods of flat roof drainage: Gravity drainage
(gravity principle) and siphonic drainage (negative pressure)

Green roofs
Green roofs make a contribution towards climate control and, in cities, offer additional areas that enable the return of water to the natural water cycle.

DIN 1986-100:2016-12
The most important standard for the regulation of roof drainage in Germany.

Our Prodcuts

New Bathroom Landscapes

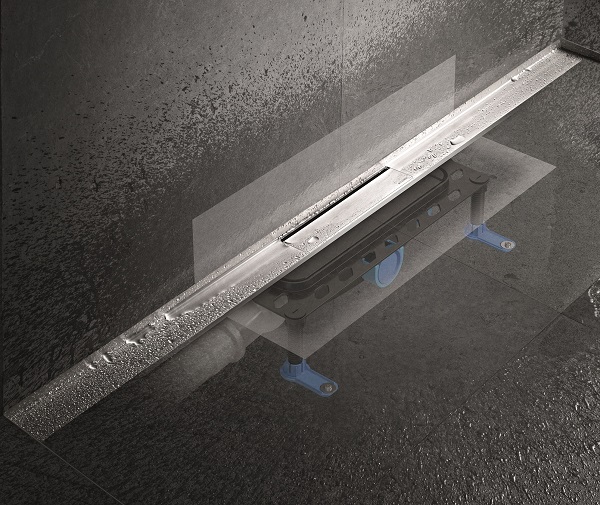

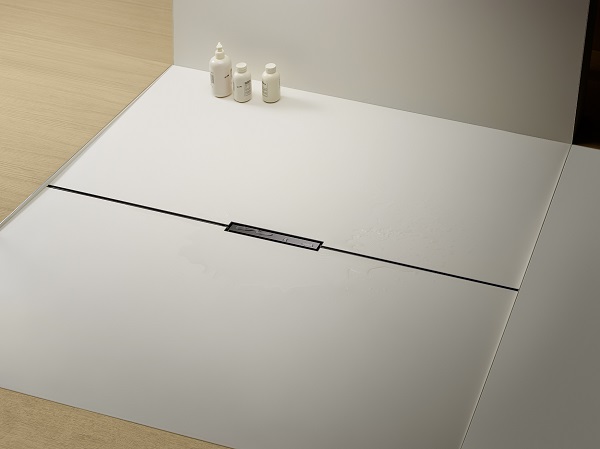

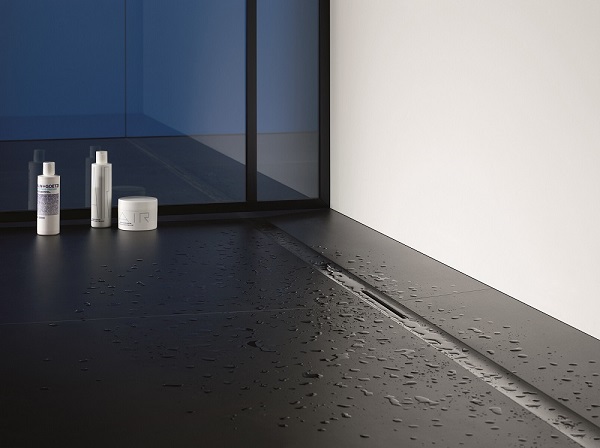

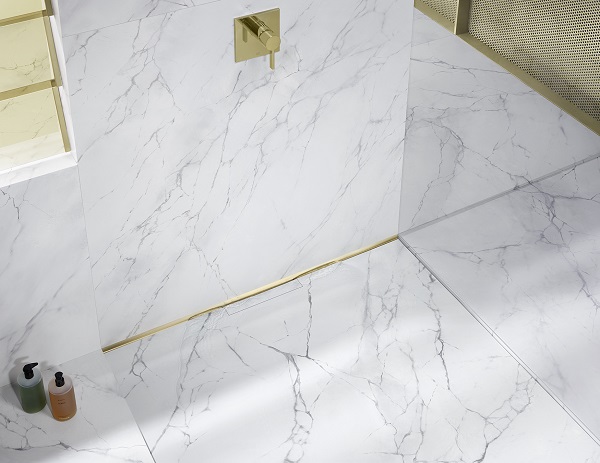

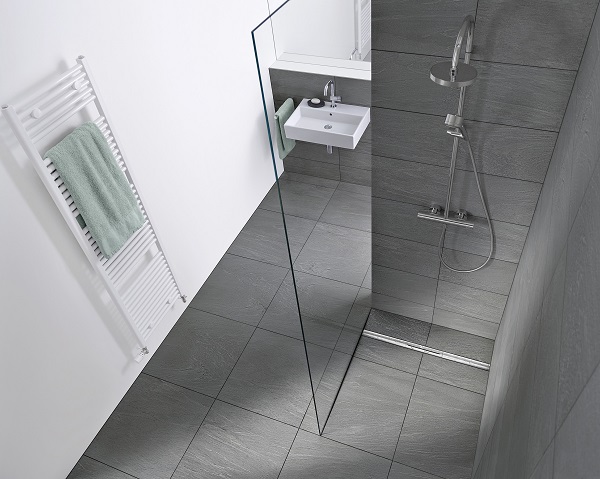

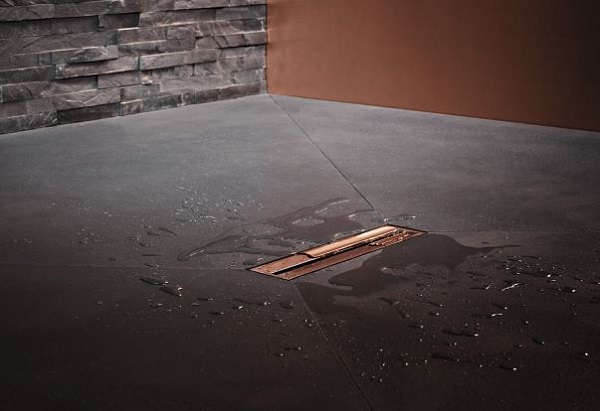

• Shower channel systems

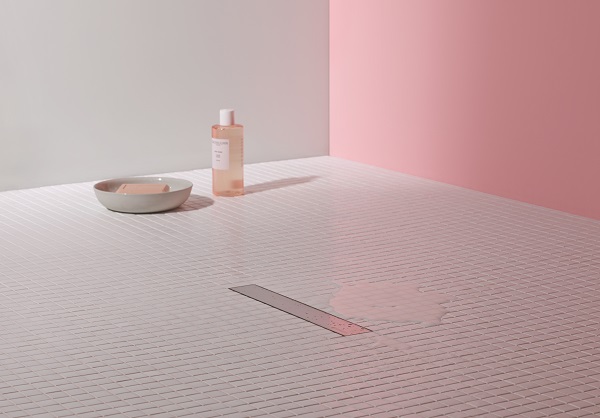

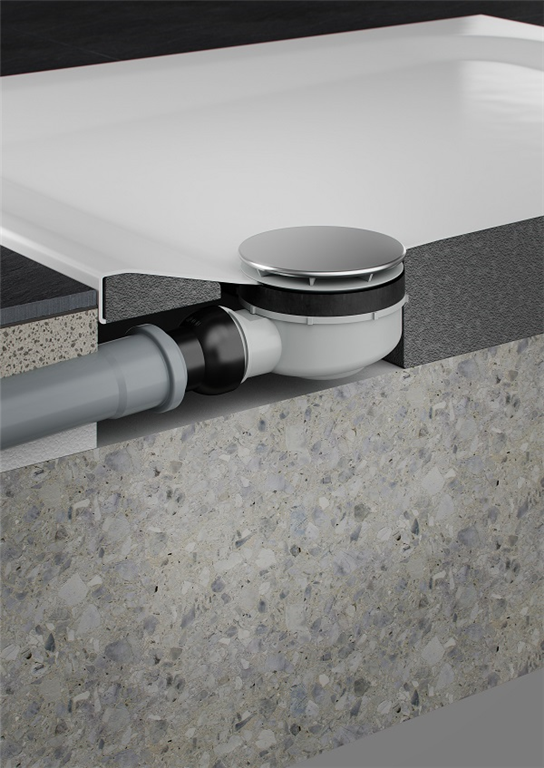

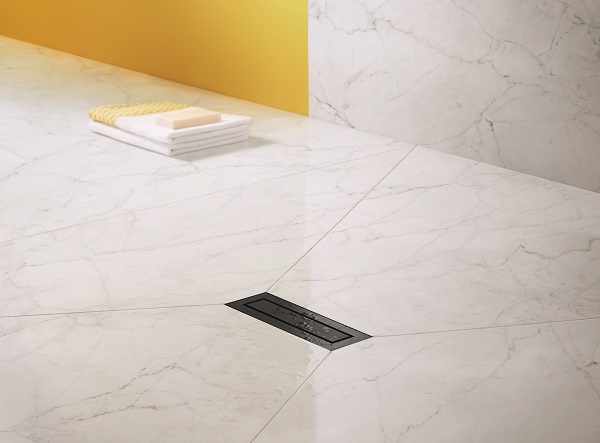

• Shower & bath drains, complete
• Shower & bath drains, modular system
• Designer cover plates
• Shower underlays
• Drains for natural stone shower trays
• Aktiv! drainage
• Fire insulation for floor drains

House and property Interiors

• Floor drains
• Shower traps
• Traps
• Pipe technology – accessories
• Air-admittance valves
• Anti-flooding valves & cellar drains
• Electronic urinal control

House and property Exterior

• Floor drains
• Roof drains
• Balcony drains
• Fire insulation systems

BIM – Building Information Modelling

Now available: BIM data for selected products – and we keep expanding our offering. Our data are compatible with ArchiCAD, Revit and IFC.

Three letters that have revolutionised the building industry: BIM stands for Building Information Modelling. BIM represents a new, software-aided method of object planning. BIM itself is not a software, but rather an object-oriented modelling strategy that is implemented using BIM-compatible planning and construction software.

Find your ideal drainage system
